A Brief About

Post Tensioning System

Post-tensioning is a method of reinforcing (strengthening) concrete or other materials with high-strength steel strands or bars, typically referred to as tendons. Post-tensioning applications include office and apartment buildings, parking structures, slabs-on-ground, bridges, sports stadiums, rock and soil anchors, and water-tanks. In many cases, post-tensioning allows construction that would otherwise be impossible due to either site constraints or architectural requirements.

Service
Service

Although post-tensioning systems require specialized knowledge and expertise to fabricate, assemble and install, the concept is easy to explain. Imagine a series of wooden blocks with holes drilled through them, into which a rubber band is threaded. If one holds the ends of the rubber band, the blocks will sag. Post-tensioning can be demonstrated by placing wing nuts on either end of the rubber band and winding the rubber band so that the blocks are pushed tightly together. If one holds the wing nuts after winding, the blocks will remain straight. The tightened rubber band is comparable to a post-tensioning tendon that has been stretched by hydraulic jacks and is held in place by wedge-type anchoring devices.

Construction

Advantages

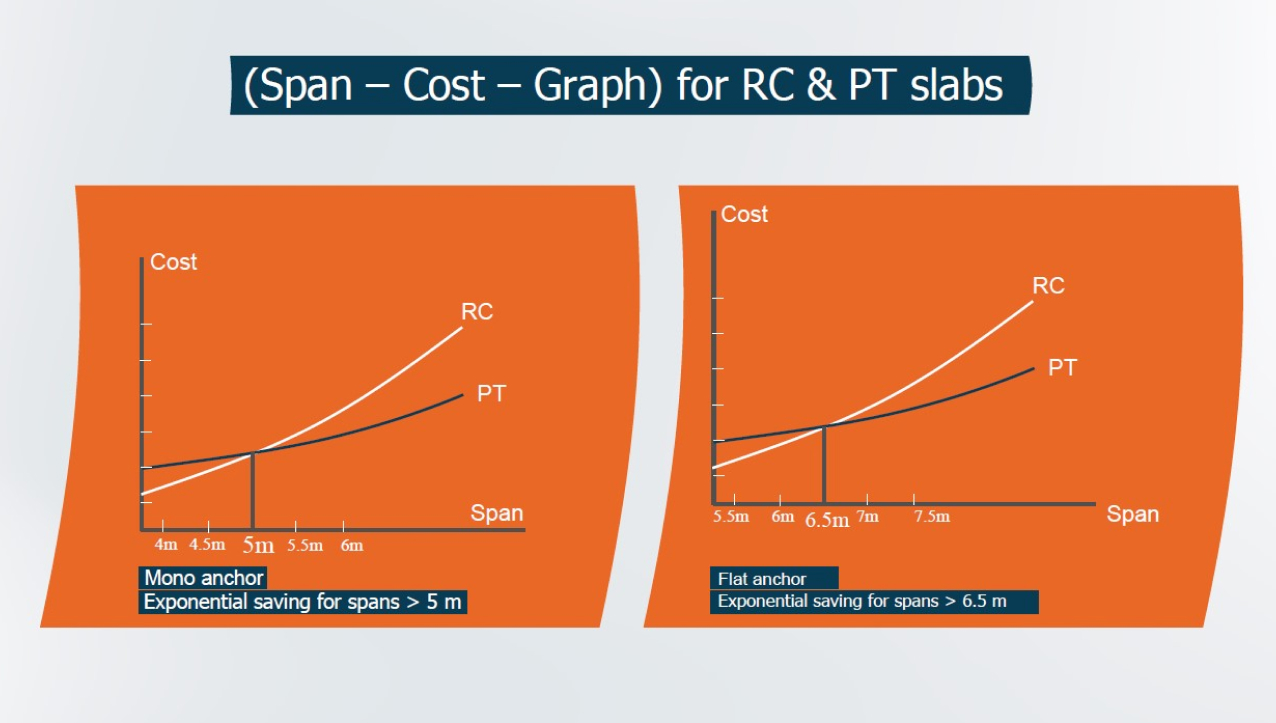

Reducing direct and indirect cost
From 16% To 21%
Less material storage space

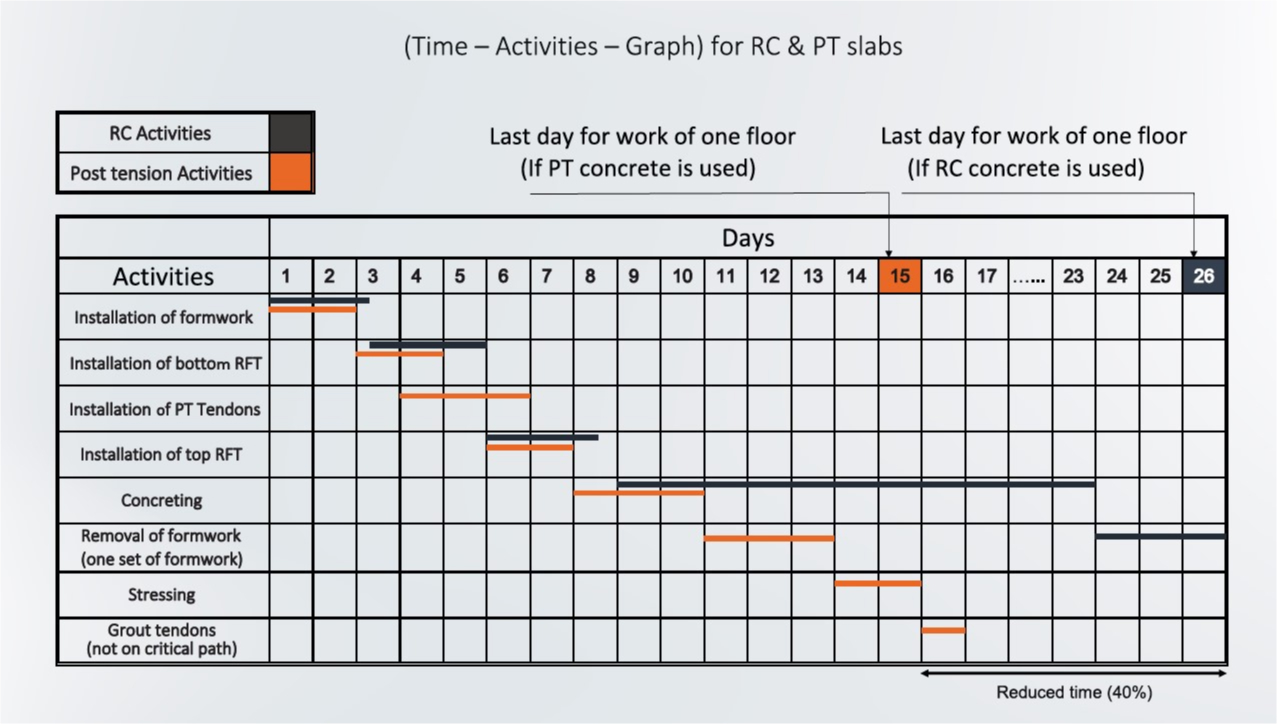

Reducing construction time
From 35% To 40%

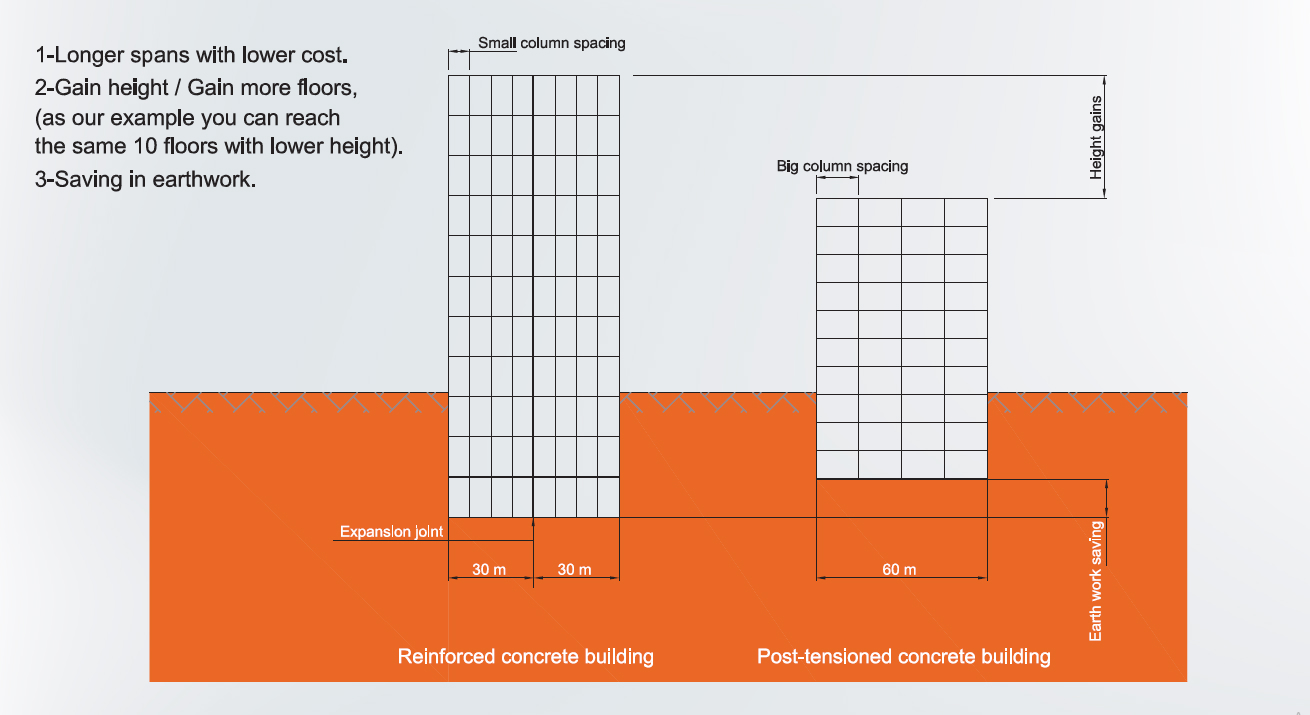

Design Advantages

Gain more floors!
Bigger column-free spans
Better deflection and cracks control
High efficiency in resisting lateral loads
Shallow structural depth
